TYRE MARKINGS EXPLAINED

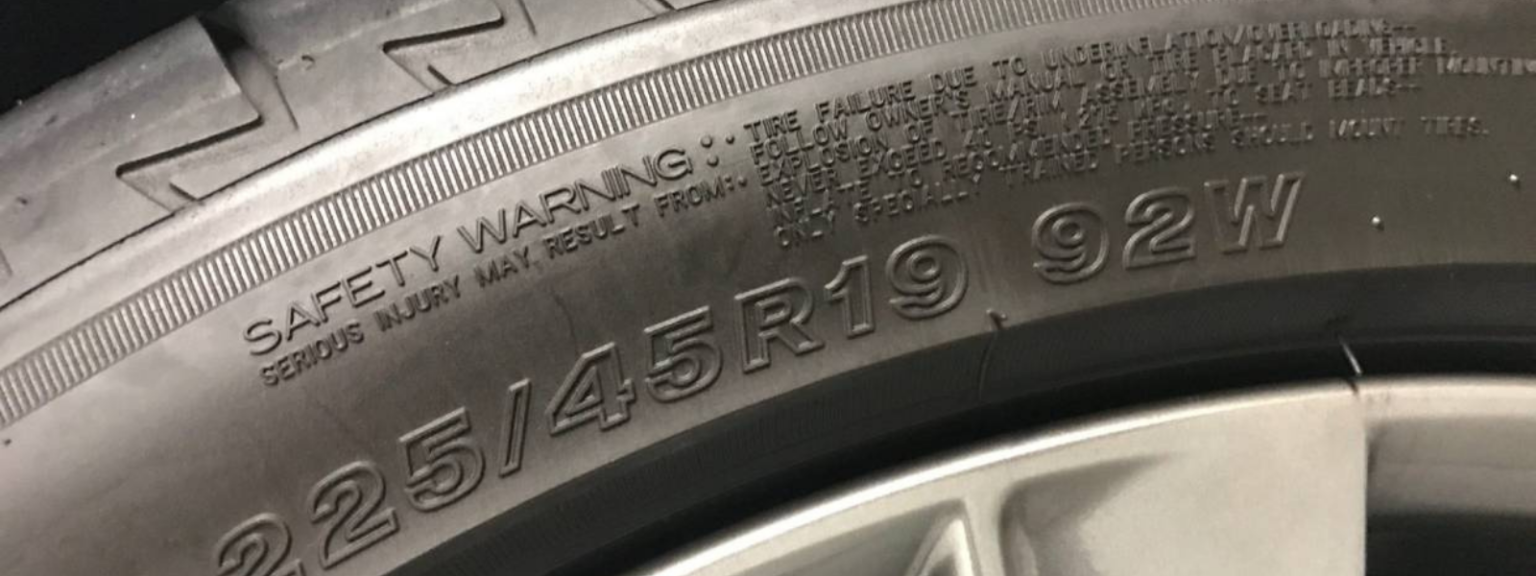

Markings the tyre sidewall offer a wealth of information, such as the load index, speed rating, tyre size and construction.

Tire sidewall with all shown information.

This information is important when it comes time to fit your wheels with replacement tyres. Every driver wants to maintain optimal safety and performance when buying new tyres; understanding the sidewall markings is an effective way of achieving exactly that.

Using the following sequence of tyre markings as an example: 225/45 R 18 95 H

An orange icon containing the number 1

Tyre width

The first number to appear in the sequence is “225.” This number is the nominal width of the tyre (in millimetres) from one sidewall to the other.

An orange icon containing the number 2

Aspect ratio

Following the slash, the next number in the sequence is “45”. This number is the tyre’s aspect ratio – essentially the height of the tyre’s profile outward from the rim represented as a percentage of the tyre’s width. We calculate this number by dividing the tyre’s section height by the tyre’s section width. So, if a tyre has an aspect ratio of 45, that means the tyre’s height is 45% of its width.

An orange icon containing the number 3

Construction

Next in our series of tyre markings is a letter instead of a number. This letter indicates the type of construction used within the casing of the tyre, which in our example is “R” for Radial construction. Other examples are “B” for Bias-ply or “D” for Diagonal construction.

Radial tyres are the most common tyres on the road today. They’re called radial because the tyre’s internal ply cords are orientated in a radial direction, from one bead over to the other, at right angles to the direction of the tyre’s rotation.

An orange icon containing the number 4

Rim diameter

The number “18” in our example represents the diameter of the wheel rim in inches.

An orange icon containing the number 5

Load index

The number after the rim diameter represents the load index. In our example, “95” is a code for the maximum load a tyre can support when fully inflated. Passenger tyres have load indices spanning from 75 to 105, where each numeric value corresponds to a specific load capacity. The carrying capacity for each value is described in a load index chart in your vehicle or tyre documentation.

An orange icon containing the number 6

Speed rating

Last in our sequence, we come to the speed rating. Letters ranging from A to Z represent the speed rating. Each letter denotes the maximum speed a tyre can sustain under its recommended load capacity. In our example, “H” is equivalent to a maximum speed of 130 mph (209 kph). Even though a tyre is capable of performing at this speed, drivers should not exceed legal speed limits.

An orange icon containing the numbers 7-12

Additional markings

After this sequence of information, other letters and symbols may also be present on the sidewall.

In our example, they denote the following:

7  Self-Supporting Run-flat tyre

8  Mercedes Original Equipment key

9  Suitable for mud and snow conditions

10  Compliant with US Department of Transportation motor vehicle safety standards

11  Week of manufacture

12 Year of manufacture
